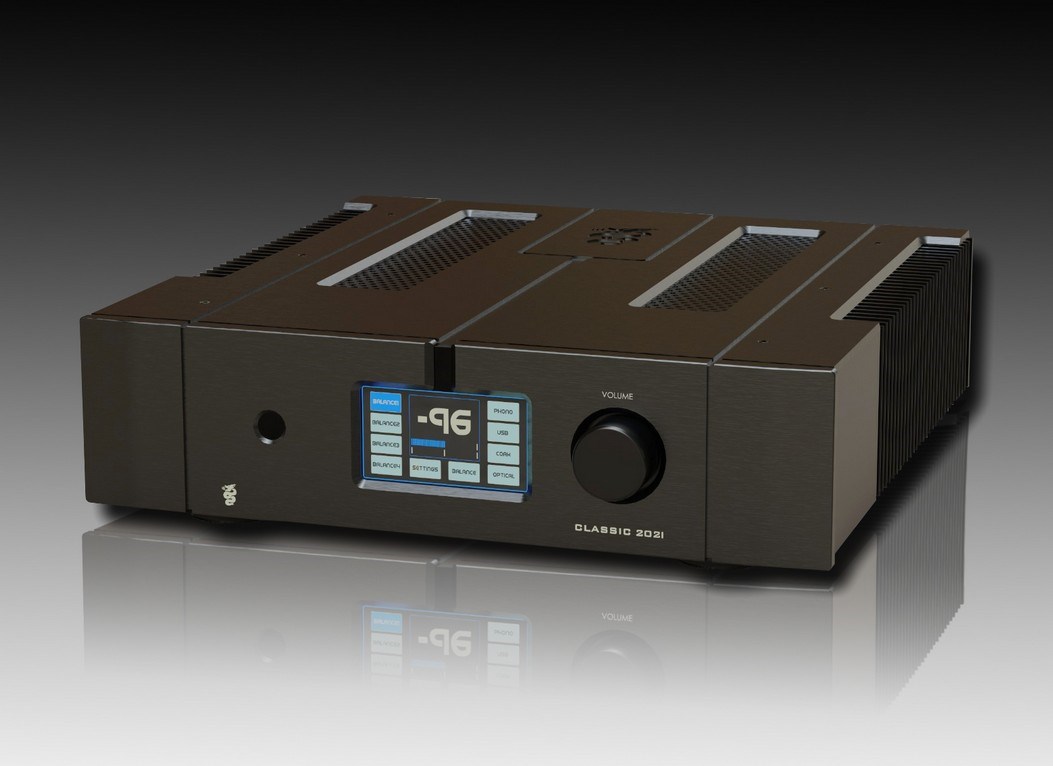

• Native balanced dual mono integrated amplifier
• RMS power for channel, both channel driven @ 1Khz
200 W @ 8 ohm
330 W @ 4 ohm
• EIA power per channel, both channels driven / 20hz-20 Khz.
280 W @ 8 ohm
420 W @ 4 ohm
• THD + N – weighted A - 0.003% a piena potenza su 8 ohm

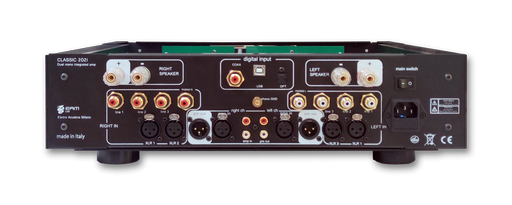

• Input
2 ingresso bilanciato via XLR
3 ingressi linea
1 ingresso phono RIAA MM
1 ingresso AMP-IN selezionabile
• ouput
1 coppia di RCA PRE-OUT
1 coppia di Binding post 6mm
• input impedance :
47 Kohm via XLR , 22 Kohm via RCA
• Slew/rate
35 V/uS
• Frequency response
Da 20 hz a 90 Khz +/- 0.2 db
• Phono input
MM – 47Khom – 41 db gain
• DAC section
USB – 784 Khz pcm – DSD256 in Dop mode / DSD 512 nativo
COAX
Optical
• Channel separation > 80 db
• SNR weighted A >104 db
• Dimension 46 ––x 42 x 13 cm. ( P x L x H )
• weight 20 kg
