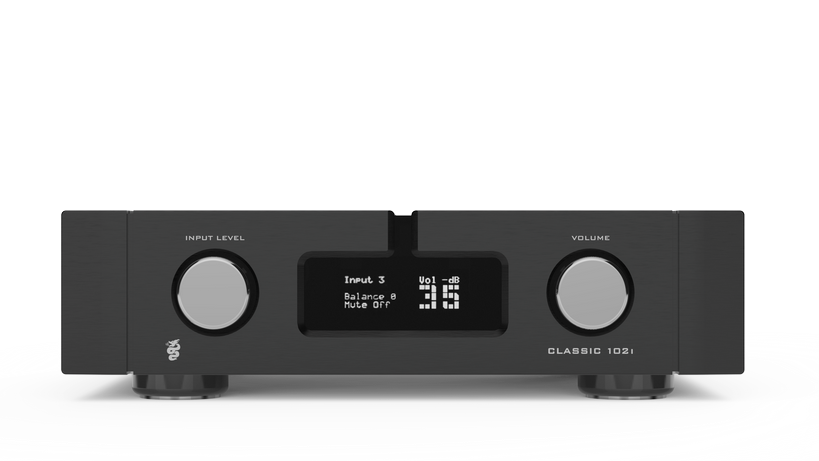

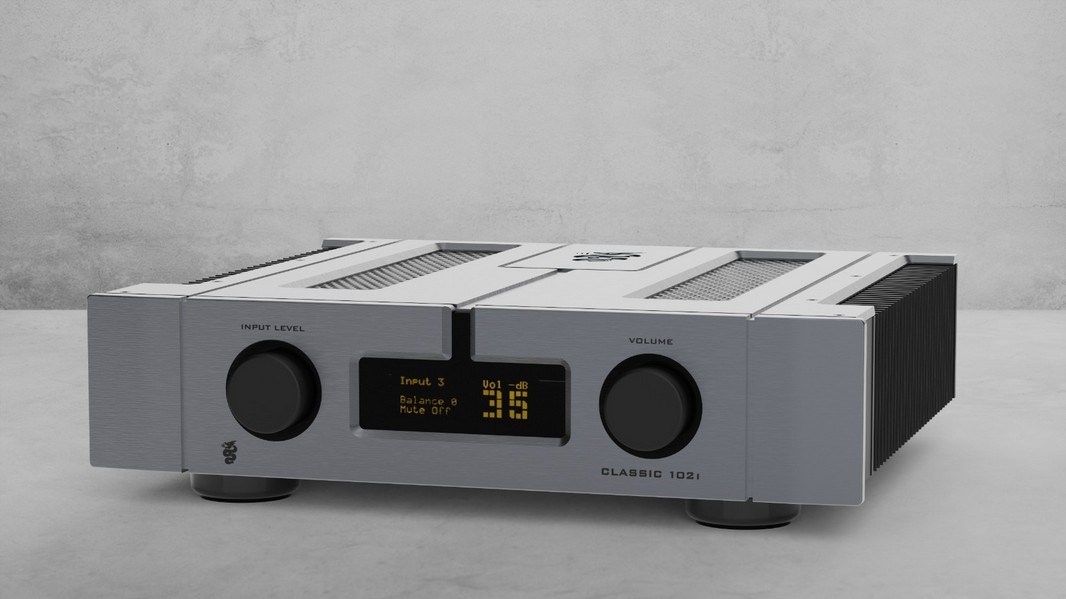

Native balanced dual mono integrated amplifier
• RMS power per channel, both channels driven @1Khz
100W @ 8 ohms
180W @ 4 ohms
290W @ 2 ohms
• EIA power per channel, both channels driven / 20hz-20Khz.
190W @ 8 ohms
300W @ 4 ohms
450W @ 2 ohms
• THD + N – A-weighted - 0.003% at full power into 8 ohms

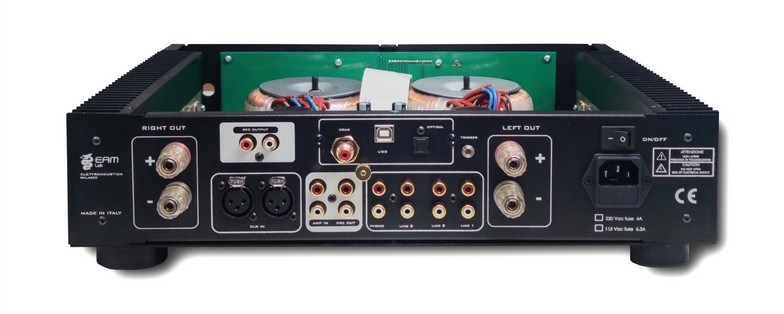

• Inputs
1 balanced input via XLR
3 line inputs
1 RIAA MM phono input
1 selectable AMP-IN input
• exits
1 pair of RCA PRE-OUT
1 pair of 6mm Binding posts
• Input impedance:
47 Kohm via XLR, 22 Kohm via RCA
• Slew/rate
35 V/uS
• Frequency response
From 20 Hz to 40 Khz +/- 0.2 dB
• Phono input
MM – 47Khom – 41 db gain
• DAC section
USB – 384 Khz pcm – DSD256 in Dop mode / native DSD 512
COAX
Optical
• Channel separation > 77 db
• A-weighted SNR >102 db
• Dimensions 38 ––x 42 x 11 cm. (D x W x H)
• Weight 15 kg
• OPTIONAL DISPLAY COLORS
White, yellow, green, blue
Remote control included
