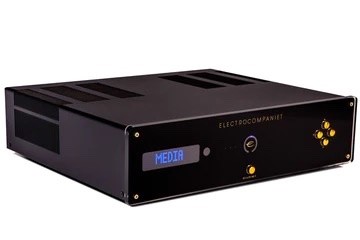

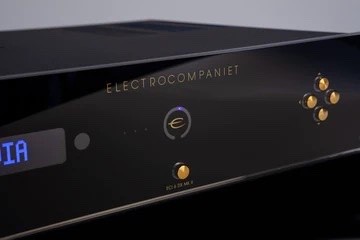

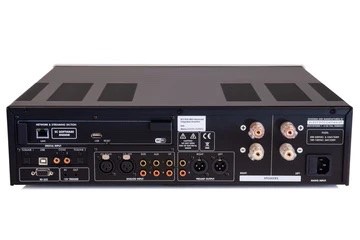

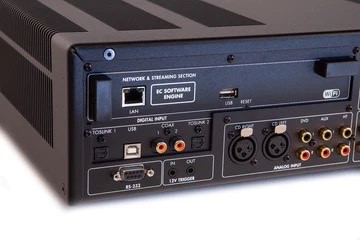

ECI 6 DX MKII INTEGRATED AMP/DAC/STREAMER 網路串流綜合擴大機
(編號:ECI 6 DX MKII INTEGRATED AMP/DAC/STREAMER)
$363,000
$363,000
加入至追蹤清單
All measurements are made at 120V / 240V //50Hz / 60Hz
Digital section:
D/A converter
24 bit/192 kHz
Sample rate converter
24bit / 192kHz
Inputs
SPDIF, 2x Toslink, 1x USB
USB:
asynchronous up to 24bit/ 192kHz supported
SPDIF:
24bit/ 192kHz
Toslink:
24bit/ 96kHz
Streamer section
• Advanced 802.11 AC WiFi with MIMO
• 1x Gigabit Ethernet (1000Mbps)
• 1x USB for external storage
• iOS, Android and web app
Streaming services
• AirPlay ®
• AirPlay 2 ®*
• Spotify ® Connect
• Qobuz ®
• TIDAL ®
• TIDAL ® Connect
• Roon Ready
• DLNA
• Internet Radio
• Bluetooth streaming from any Bluetooth enabled device
* Future software update.
Supported formats:
• All popular formats including: WAV/WAVE, MP3, AAC+, Vorbis, ALAC, FLAC, APE, WMA, up to 192kHZ/24bit, DSD, up to DSD 128 (5.6 MHz)
Preamplifier section
Input impedance
( Balanced input )
47Kohm
Maximum input level
10 Volt RMS
Noise floor
( 1Vrms, 20 - 20 kHz, balanced)
-135 dB
THD + N
(1Vrms, 20 - 20 kHz, balanced)
<0.004%
Gain (Balanced)
0 dB
Amplifier section
Output Impedance
< 0,02 Ohm
Frequency response
1 – 150 kHz
Channel separation
> 120 dB
THD ( 20 - 20 kHz)
< 0.004%
Maximum peak current
>100A
Damping factor 8 ohm load
>350
I Input sensitivity 120W output
1.3Vrms
Input sensitivity HT 120W output
1Vrms
Gain HT Input
x36 (31 dB)
Rated output power
8 ohms
2 x 125 W
4 ohms
2 x 200 W
2 ohms
2 x 370 W
Power consumption
110 W
Standby
1W
(no load or signal)
Dimensions
Width
470 mm / 18.3 inches
Depth ( with a speaker terminals)
430 mm / 16.9 inches
Height
128 mm / 5 inches
Weight
20,5 Kg / 45 lbs.
