All measurements are made at 120V / 240V //50Hz / 60Hz


Input impedance 47 Kohm
Output impedance 100 ohm
Max input +-15 Vp-p ( +- 30Vp-p Bal)
Max output +-30 Vp-p ( +- 30Vp-p Bal)
Minimum gain -111dB
Maximum gain 6dB
Noise Floor(0 dB gain) < -130 dB
Frequency responce 1 – 200 kHz
Channel Seperation > 120dB
THD (1V in, 1V out) <0.002%

Power consumption (no load or signal) 30 W

Dimensions and Waight
Width 470 mm – 18.5 inches
Depth 372 mm – 14.64 inches
Height 80 mm – 3.14 inches
Weight 11.3 kg – 24.9 lbs

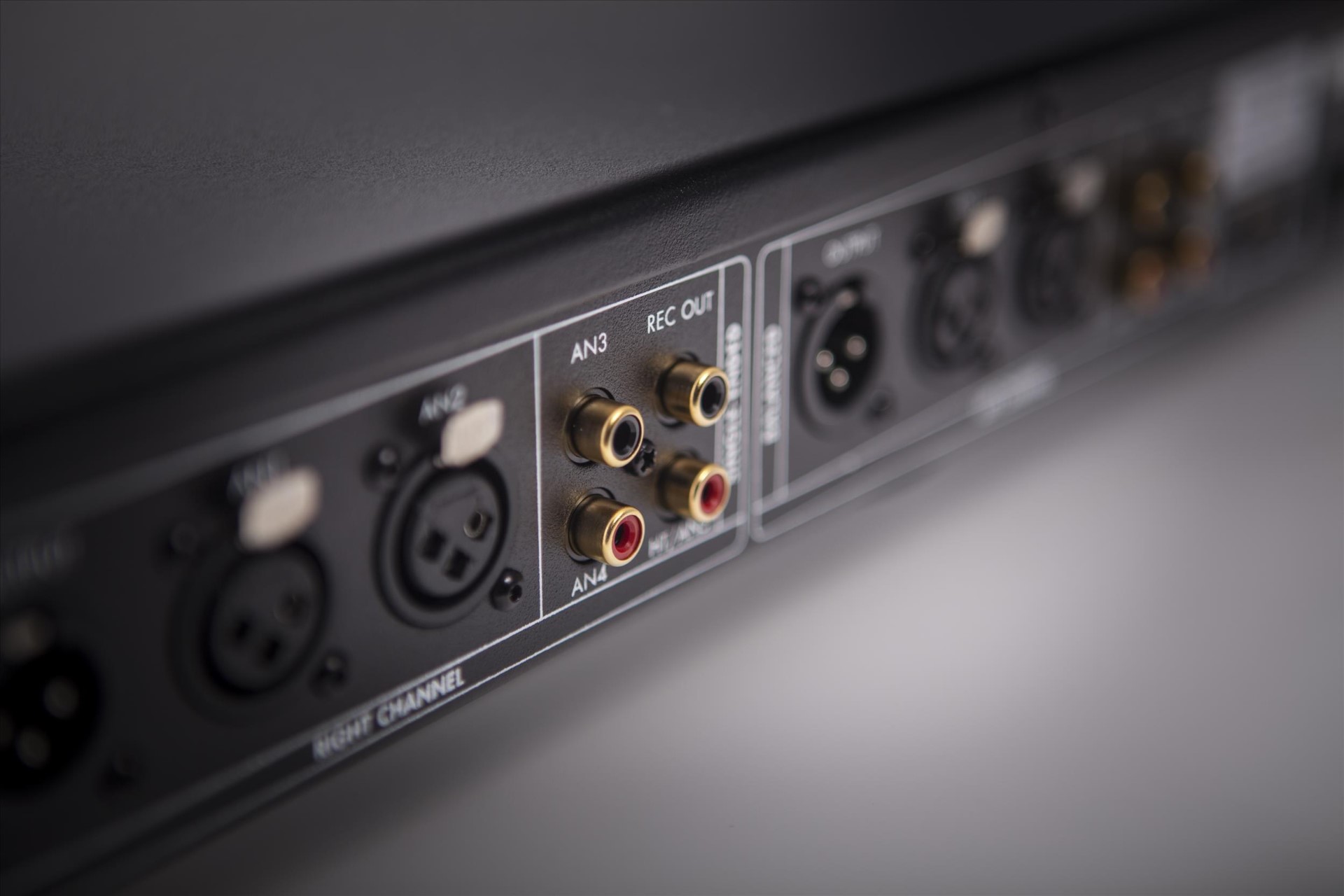

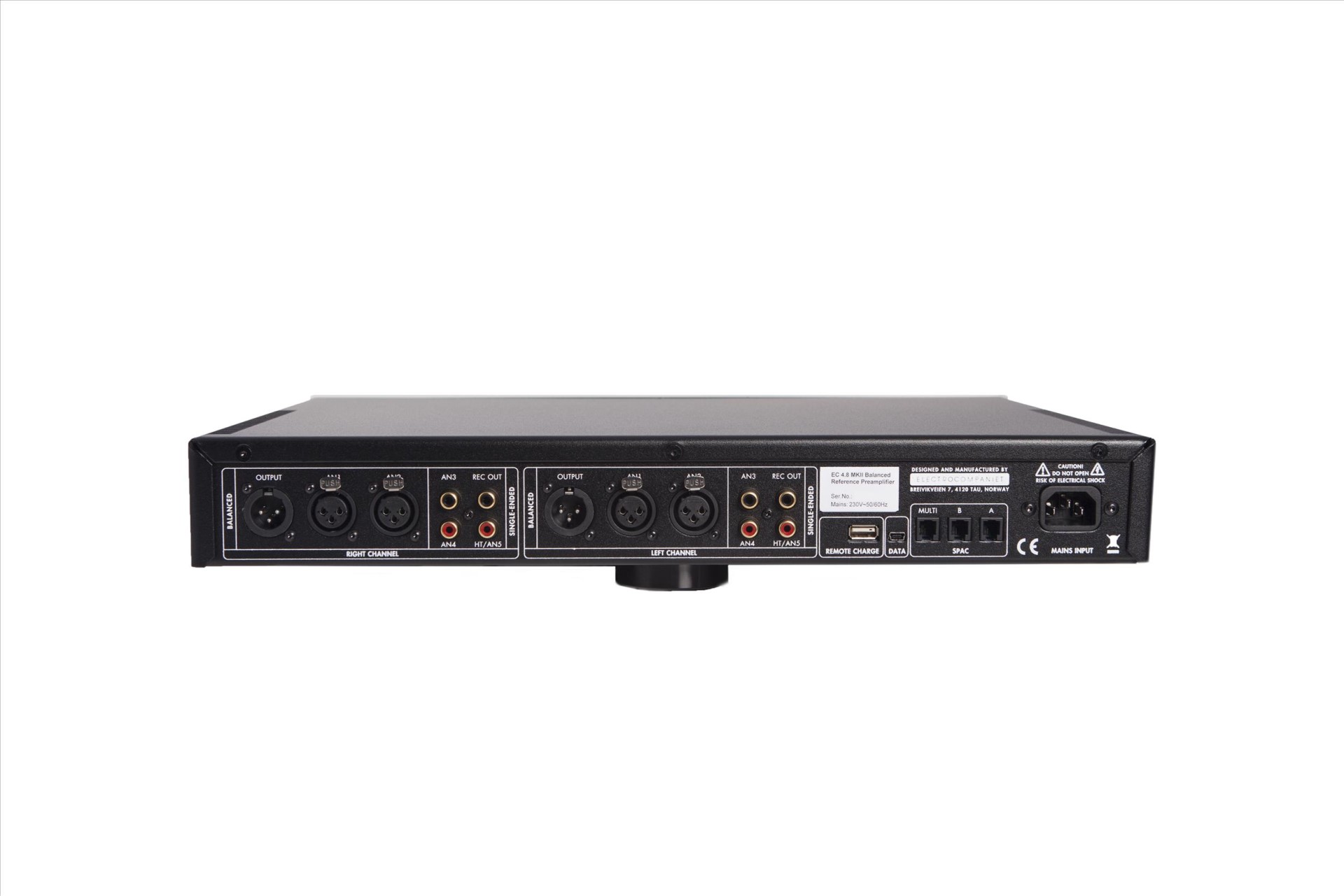

Inputs
Balanced 2 x 2 channel
Single ended 3 x 2 channel

Control Ports
Nettwork 3 x SPAC
Programming 1 x USB

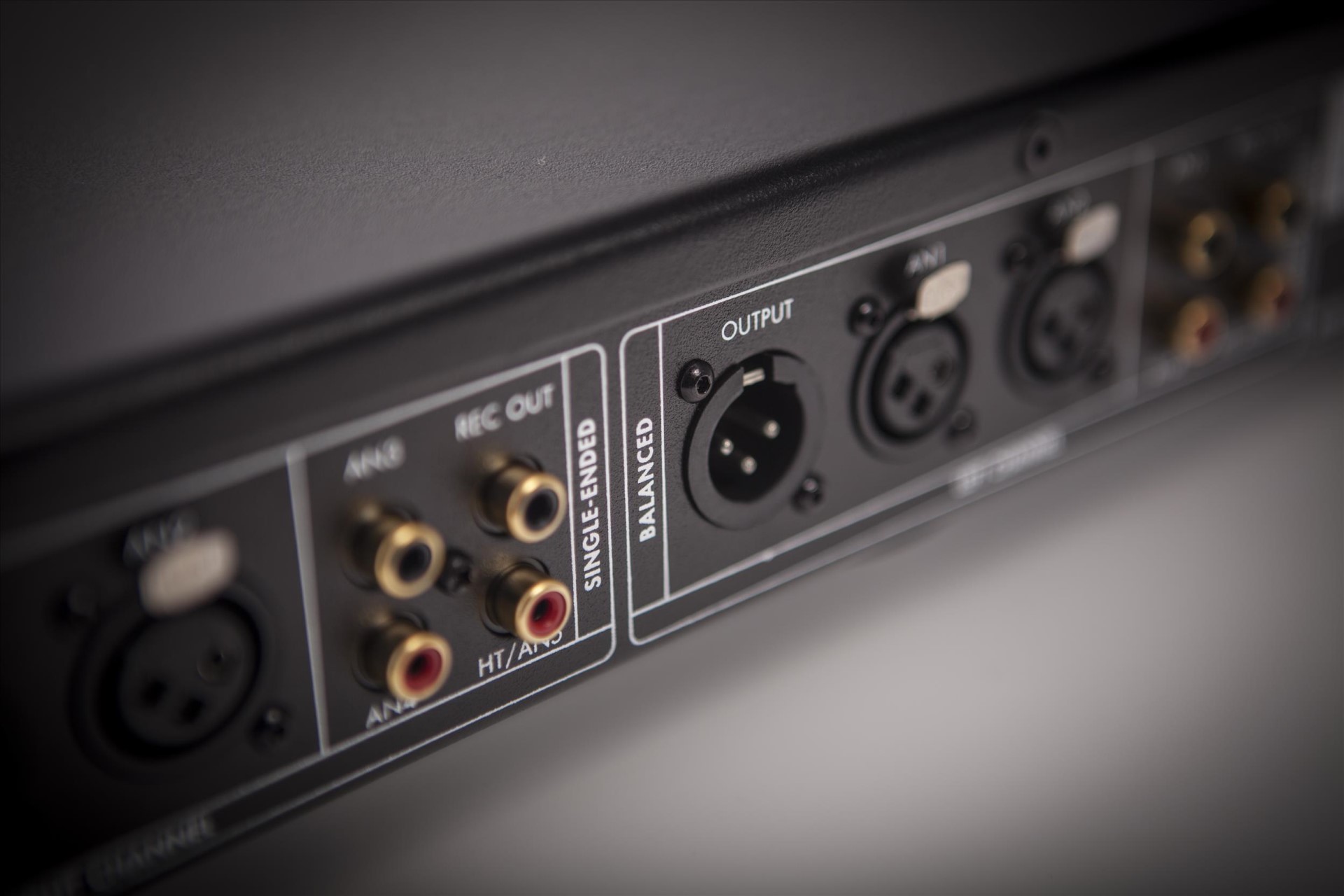

Outputs
Balanced 1 x 2 channel
Single ended Record Out
