SPECIFICATION

NOMINAL IMPEDANCE
4 ohms
RECOMMENDED AMPLIFIERS
10 to 250 watts
FREQUENCY RESPONSE
20Hz-30kHz
SENSITIVITY
90dB linear for 1 watt at 1 metre
BASS /MIDRANGE DRIVERS
2x ProAc 165mm (6.5”) Studio monitor design units with special coating and dust cap tunning.

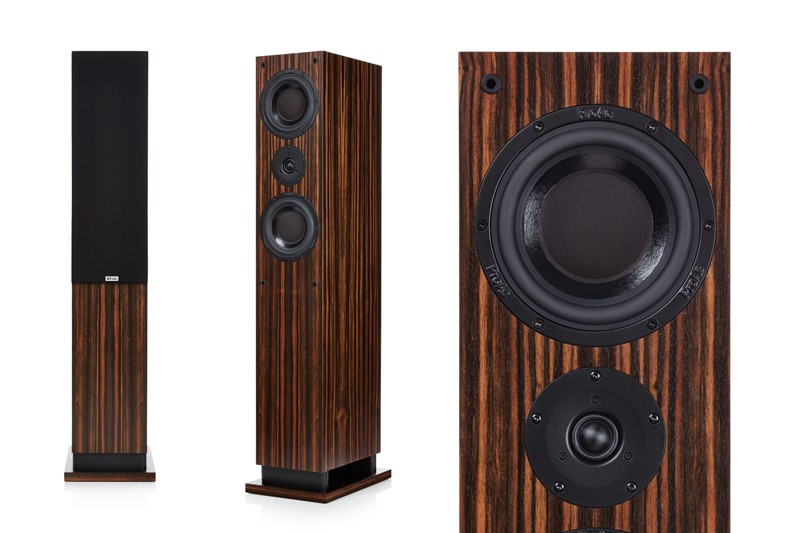

DOME TWEETER OPTION D48D
ProAc 25mm (1”) silk dome air cooled and inner damping. Mirror image offset.

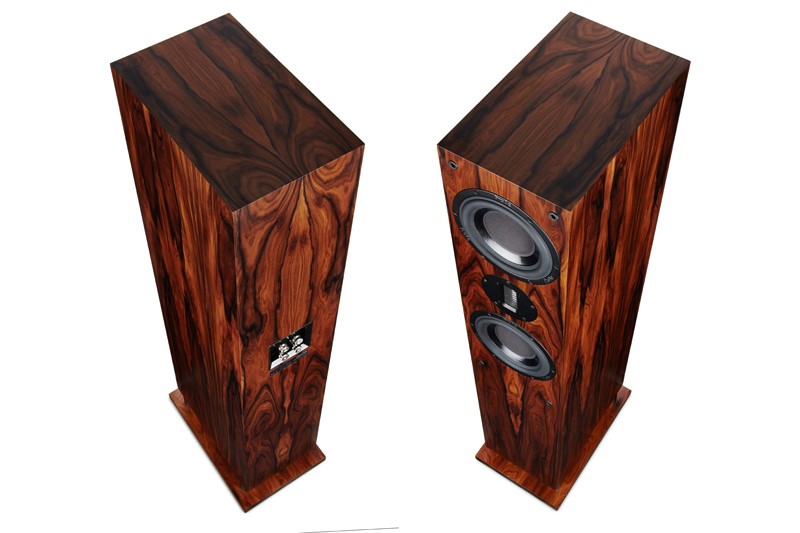

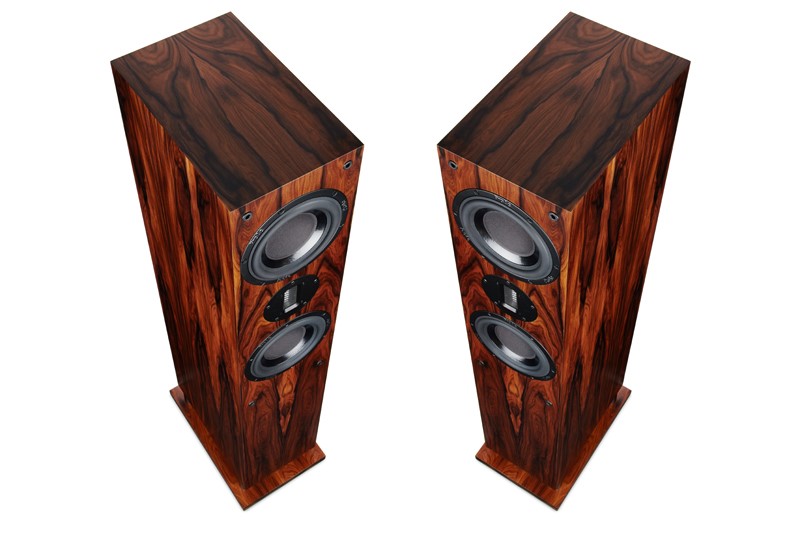

RIBBON TWEETER OPTION D48R
The ProAc ribbon tweeter has a ribbon lighter than a human hair with rear chamber damping and alnico magnet.

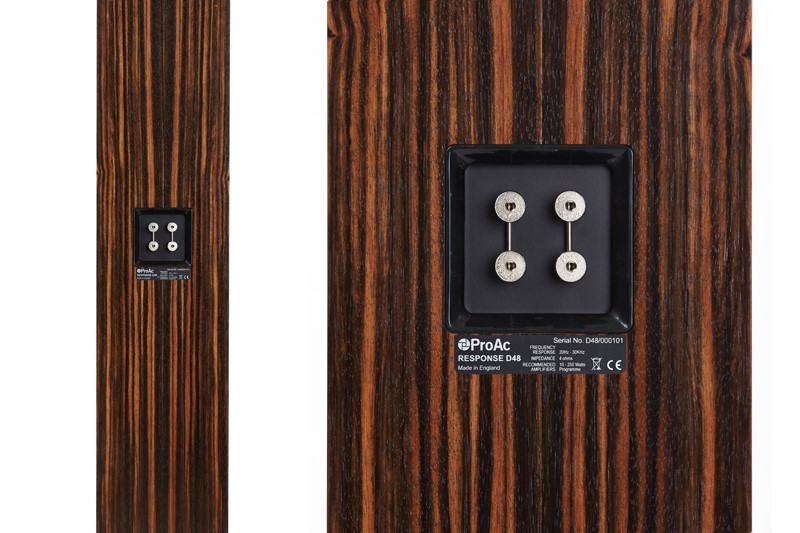

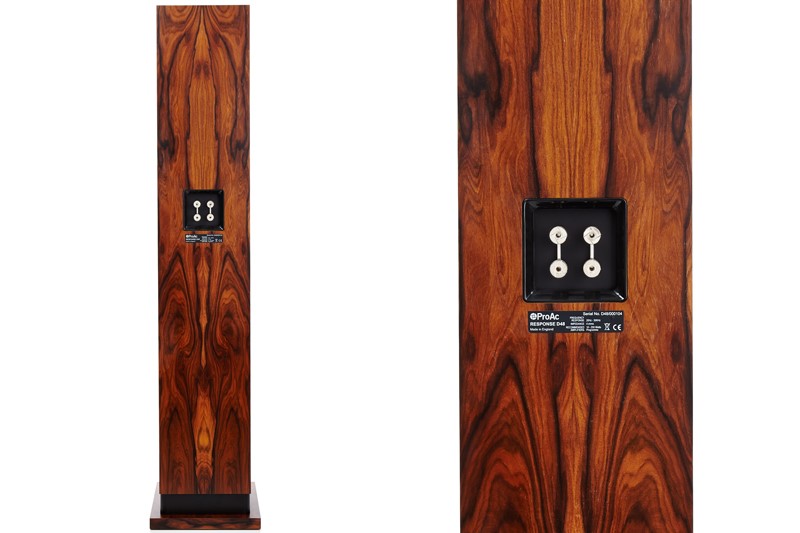

CROSSOVER
Finest components on dedicated circuit board. Multistrand oxygen free copper cable throughout. Split for optional Bi wiring or Bi amplification
HEIGHT (CABINET)

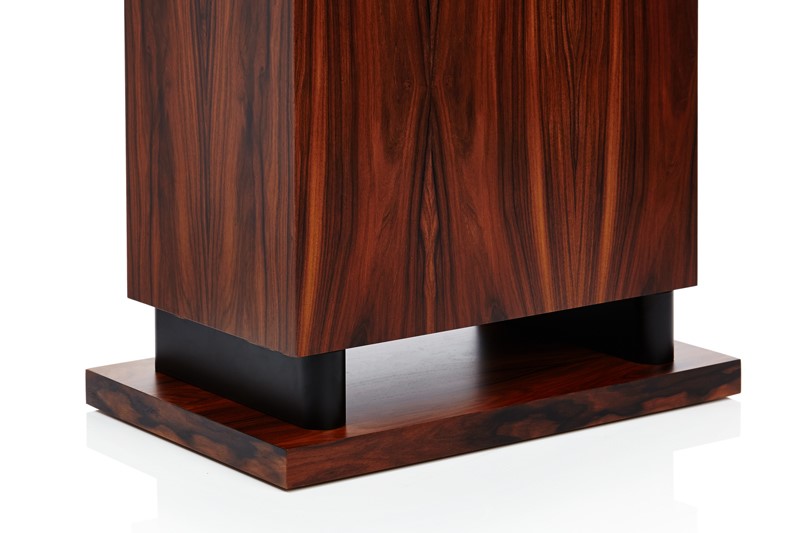

1200mm (47.25”) on spikes
WIDTH (CABINET)
212mm (8.3”)
DEPTH (CABINET)
340mm (13.5”)
WEIGHT
39kg (86lb) each cabinet
MODE
Floor standing

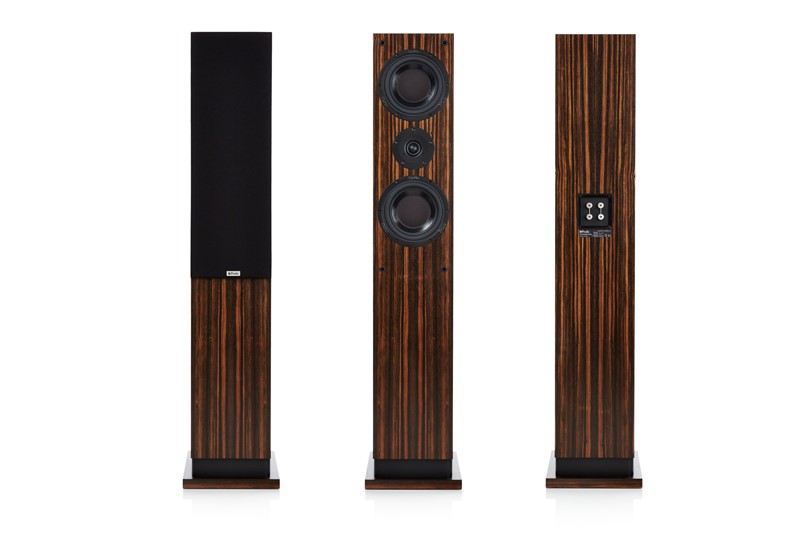

GRILLE
Acoustically transparent crimplene
STANDARD FINISHES
Black Ash, Mahogany, Cherry, Silk White, Oak and Walnut
PREMIUM FINISHES
