SPECIFICATION

NOMINAL IMPEDANCE
8 ohms
RECOMMENDED AMPLIFIERS
10 to 200 watts
FREQUENCY RESPONSE
20Hz-30kHz
SENSITIVITY
89dB linear for 1 watt at 1 metre
BASS /MIDRANGE DRIVERS
ProAc 165mm (6.5”) unit fitted with an acoustically damped Pagina Mica cone with phase plug.

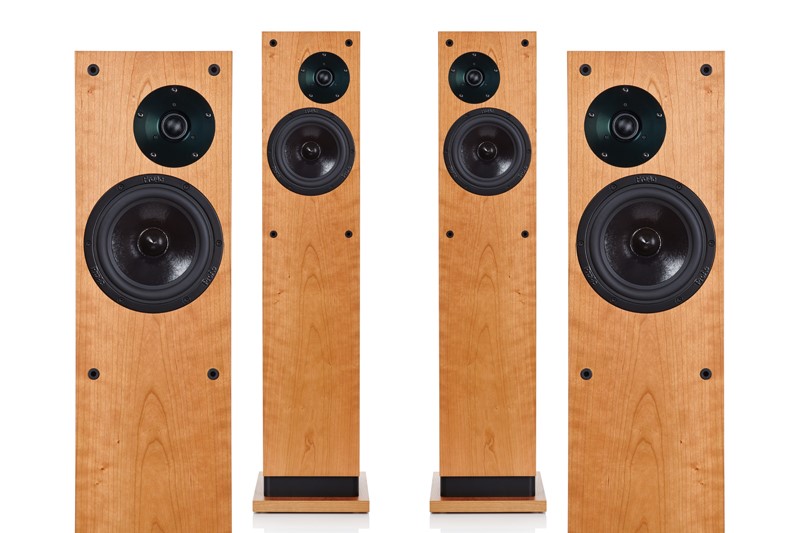

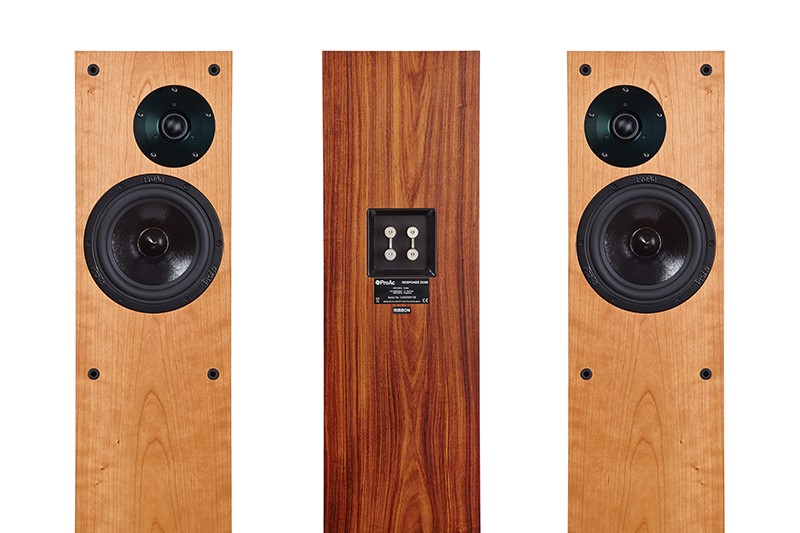

DOME TWEETER OPTION D30DS
ProAc 25mm (1”) silk dome air cooled and inner damping. Mirror image offset.

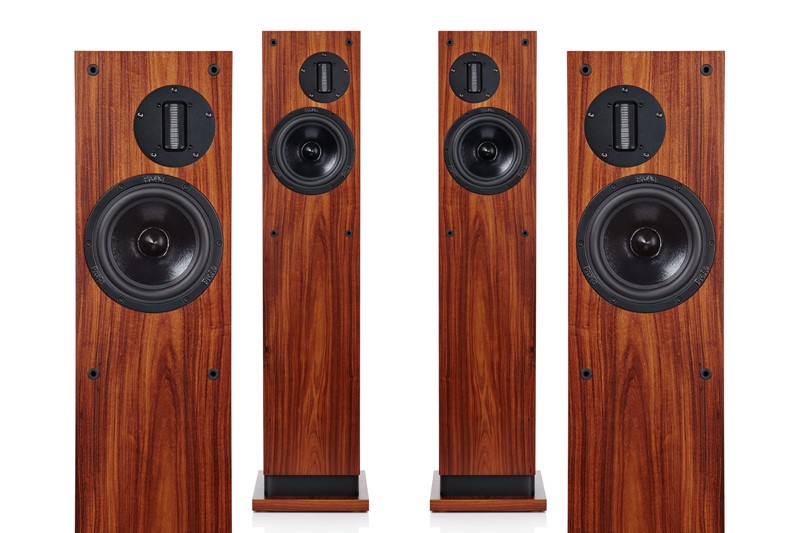

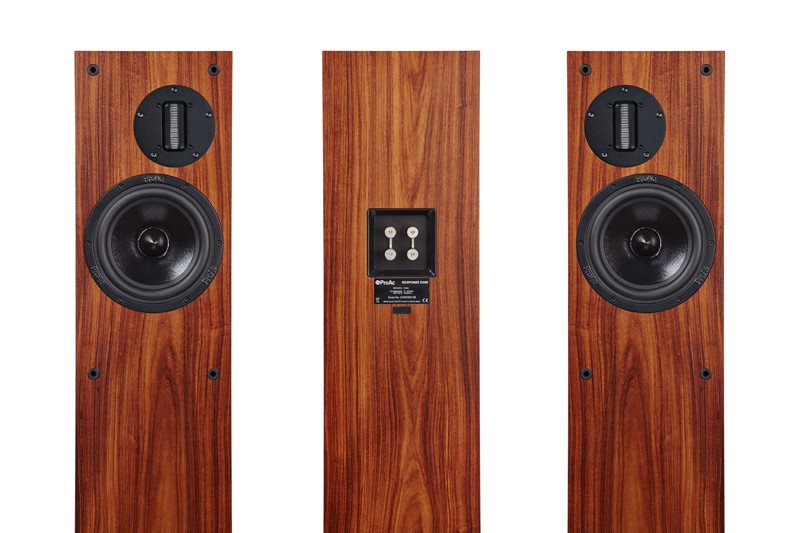

RIBBON TWEETER OPTION D30RS
The ProAc ribbon tweeter has a ribbon lighter than a human hair with rear chamber damping and alnico magnet.
CROSSOVER

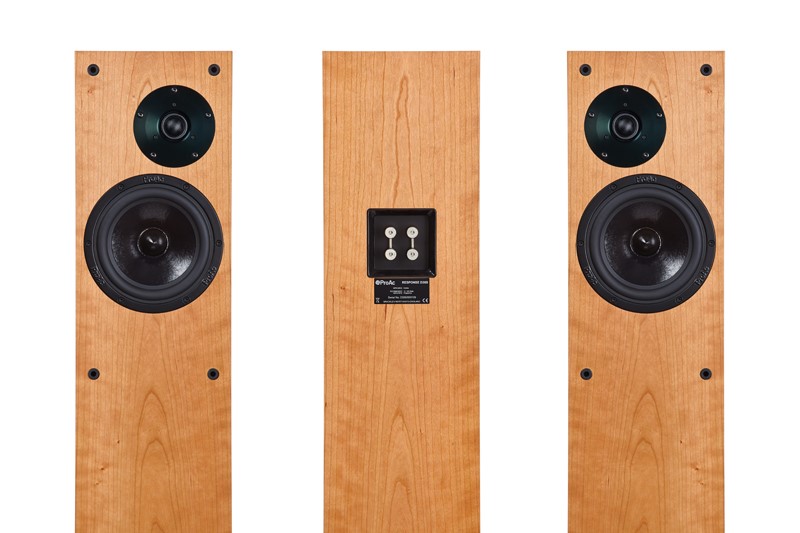

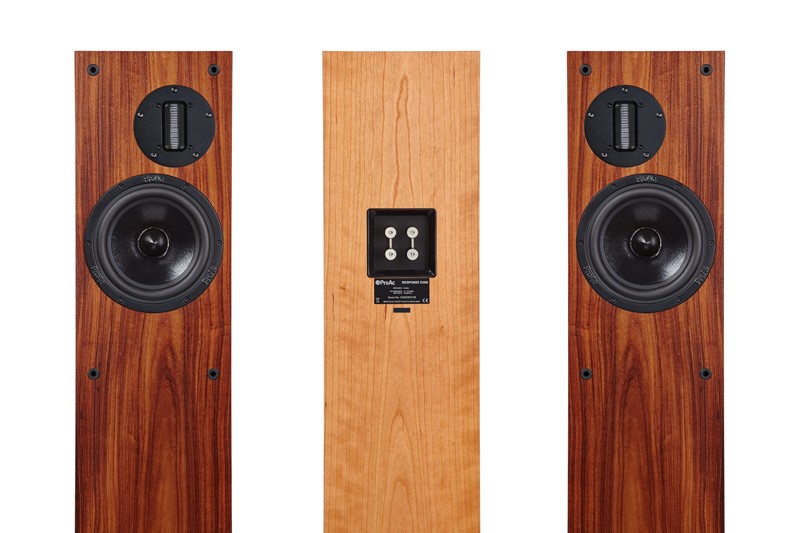

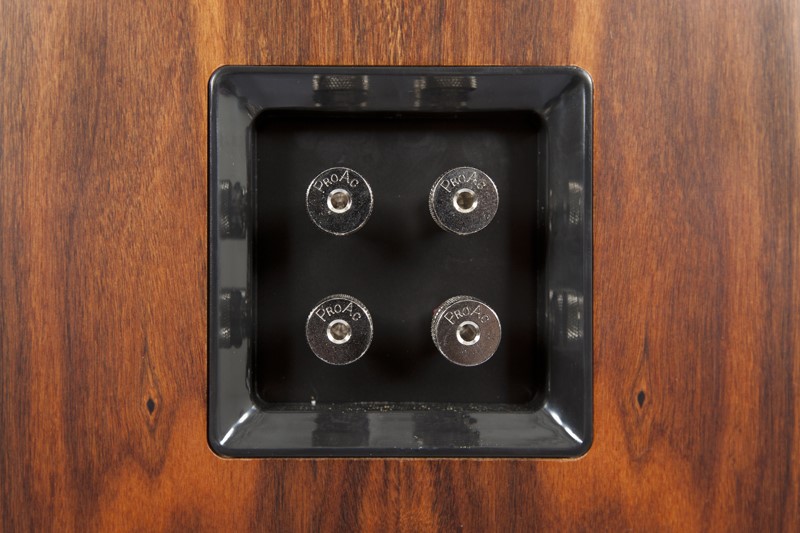

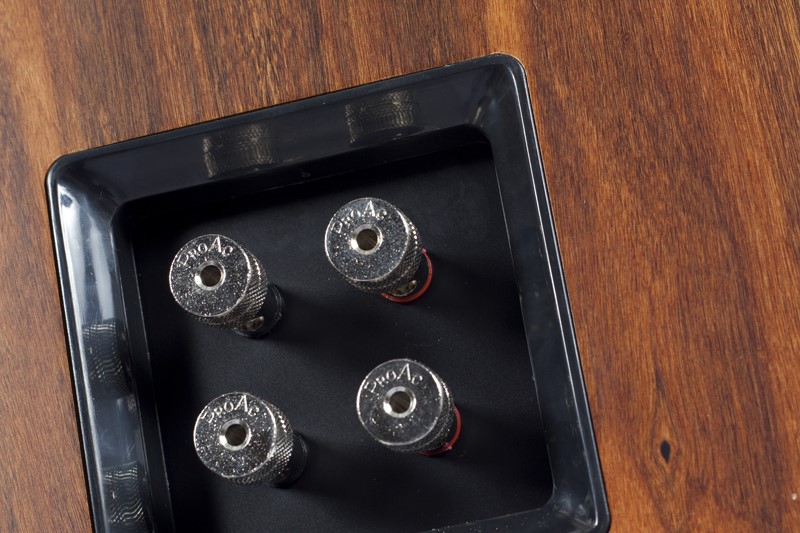

Finest components on dedicated circuit board. Multistrand oxygen free copper cable throughout. Split for optional Bi wiring or Bi amplification
HEIGHT (CABINET)

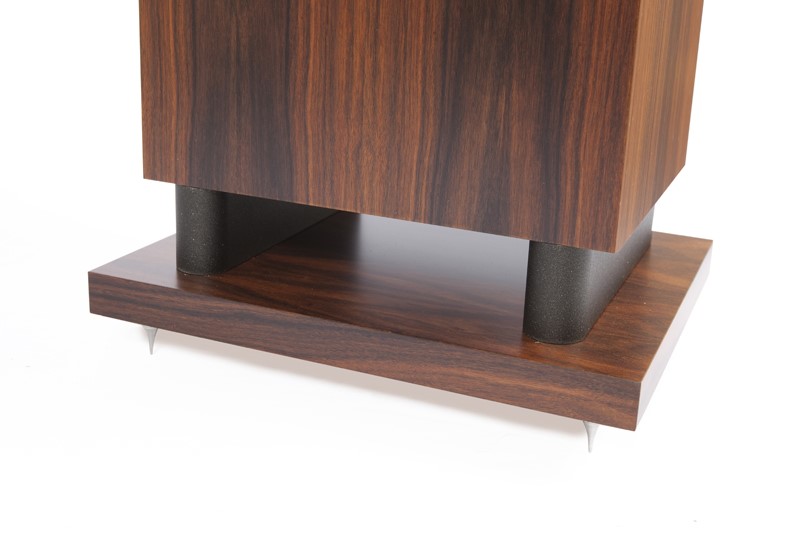

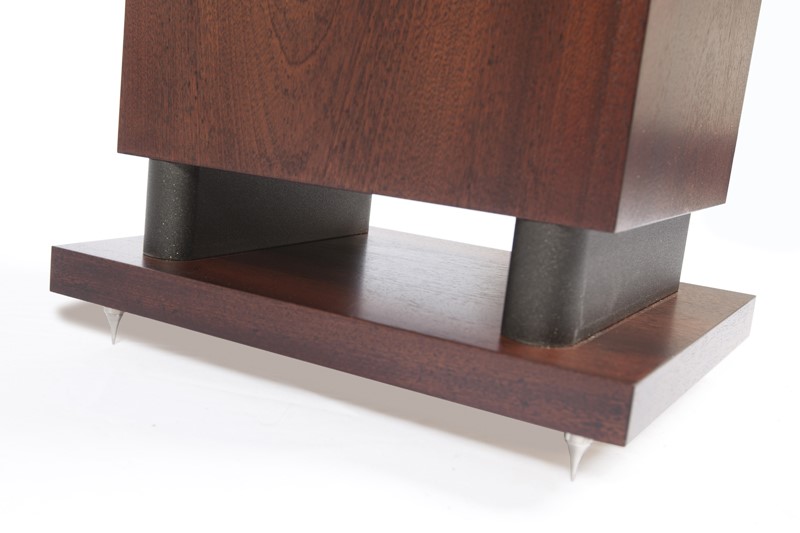

1041mm (41”) on spikes
WIDTH (CABINET)
266mm (10”)
DEPTH (CABINET)
311mm (12”)
WEIGHT
28kg (61.72lb) each cabinet
MODE
Floor standing
GRILLE
Acoustically transparent crimplene

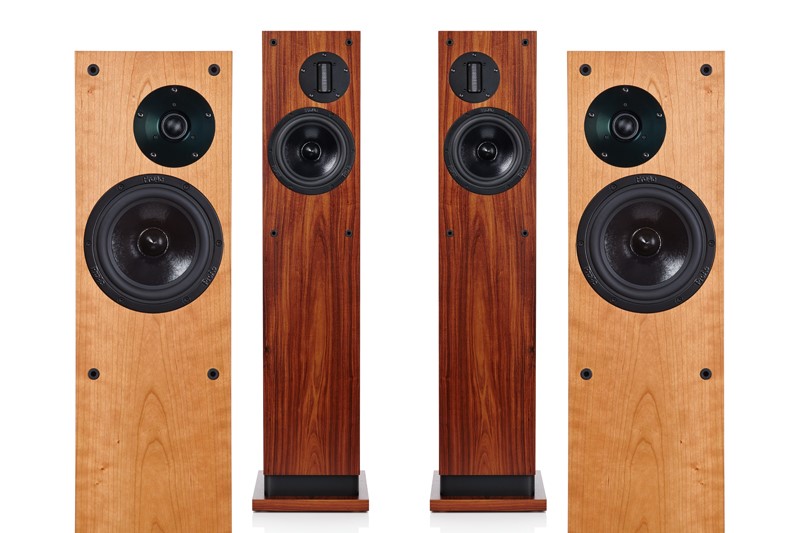

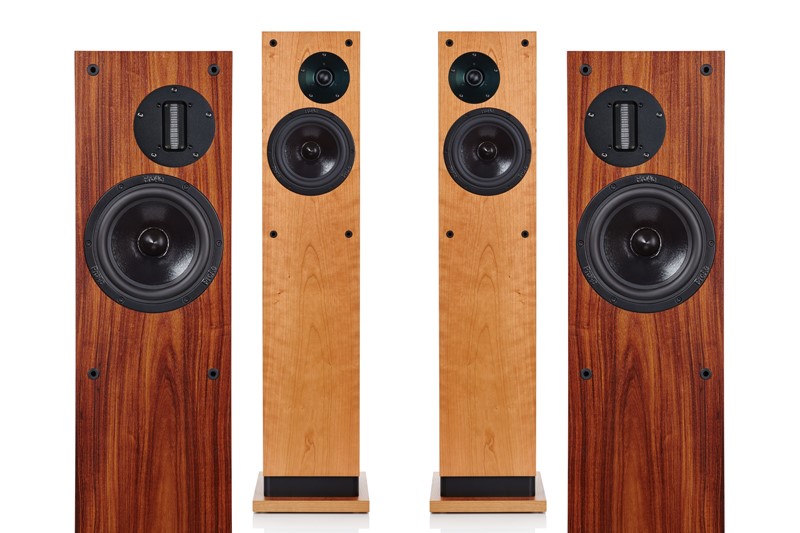

STANDARD FINISHES
Black Ash, Mahogany, Cherry, Silk White, Oak and Walnut
PREMIUM FINISHES
Rosewood, Ebony. *Premium Finishes to order at extra cost*
